200A Gas / Gasless Inverter MIG Welder

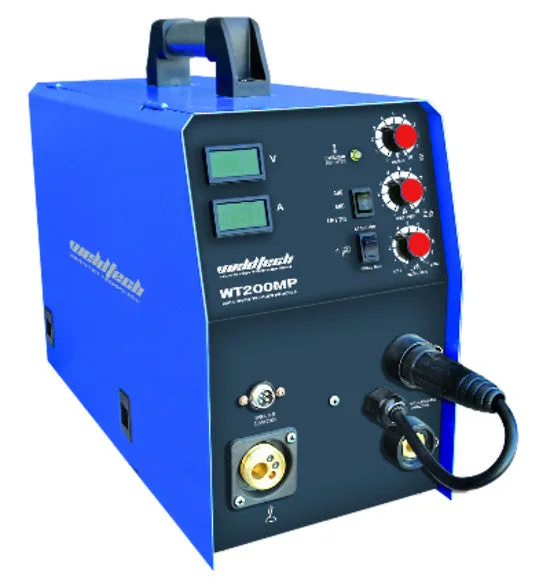

Weld like a pro with the WeldTech WT200MP - Inverter, a powerful 200A MIG, TIG and ARC welder.
Produces professional results at the workshop or on-site projects!
Infinite variable controls and IGBT inverter technology make set up a breeze.
Exceptional results on gasless welding.
Powerful - 200A welding power up to 12mm steel thickness.
Portable - Only 13kg super light weight and portable.
Multi-Process - All in one machine for ARC, MIG and TIG.
Inductance adjustment for precise weld control.
Optional spool gun available for aluminium and silicon bronze.
MIG 60% duty cycle @160A, ARC 60 duty cycle @ 130A.
230V single phase on 15A plug.
Live digital displays for accurate feedback of welding input.
Stepless voltage and wire feed control for optimum weld control.
Lift TIG with optional TIG torch.
Supplied With:
3m MB25 Euro Connect MIG torch.
3m MMA lead with Twist Lock.
Electrode Holder.
2m Earth Lead.
CO2 Gas Regulator.
2m Gas Connection Line.
Optional Accessories:
Spool Gun for aluminium.
Tig Torch
Model: WT200MP
Specifications:
| Input Power Supply | 230V AC 15A 50/60 Hz |
| Input Power Supply Tolerance | 170V - 265V AC |
| Maximum Input Current | 29.4A |
| Input Generator Capacity | 7kVA |
| MIG Voltage Output | 15V - 24V |
| MIG Current Output | 40A - 200A |
| MIG Duty Cycle | 200A@25% 160A@60% 120A@100% |
| MMA/ TIG Current Output | 30A - 170A |
| MMA O/C Voltage | 50V |
| MMA /TIG Duty Cycle | 170A@25% 130A@60% 100A@100% |
| Insulation Class | IP21 |
| Power Efficiency | 0.85 |
| Power Factor | 0.83 |
| MIG Wire Size |
Steel 0.6/0.8/0.9/1.0mm Knurled 0.8/0.9mm |
| Wire Feeding Speed | 2 - 15 m/minute |
| Mig Wire Spool Size |
D200mm / D300mm 5Kg or 15Kg |
| Post Gas Flow Time | 2s |
| MMA Rod Size | 1.6 - 4.0mm |
| Dimensions | 485 x 220 x 390mm |
| Weight | 13kgs |
All Prices Include GST
