Product Details
＋

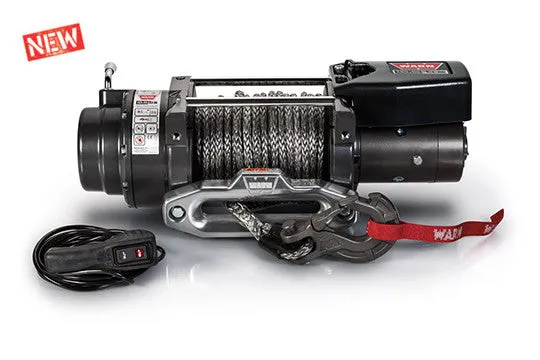

With a massive 16,500 lbs. of pulling capacity, the 16.5ti-s is not only the most powerful truck winch we make, it's also now available with 80' of 3/8" lightweight, easy-to-handle Spydura® Pro synthetic rope. The rope's heat-treated construction provides maximum tensile strength, and the temperature-resistant sleeve on the first layer provides maximum heat protection. This winch also features a thermometric indicator which provides operator feedback during the winching process, and is great for the biggest, heaviest vehicles on or off the pavement.
- 16,500 lb. capacity
- Includes 80' of 3/8" Spydura Pro synthetic rope
- Includes 18,000 lb capacity EPIC hook
- Thermometric indicator LED provides operator feedback
- Large-frame winch architecture mounts feet forward
- Contactor control for the ultimate in reliable electronics
- Powerful, efficient series-wound motor
- Durable, smooth three-stage planetary gear train
- Best-in-class cone brake
- Limited lifetime warranty
| Part Number: 97740 |
| Rated Line Pull: 16,500 lbs. (7484 kgs) single-line |
| Motor: 12V 4.6 hp, Gen II, Series Wound |
| Electrical Control: Solenoid Control Pack |
| Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead |
| Geartrain: 3-stage planetary |
| Gear ratio: 315:1 |
| Clutch (freespooling): Rotating ring gear |
| Brake: Automatic direct drive cone |
| Wire rope: Spydura Pro Synthetic: 80' x 3/8" (9.5mm x 24.3m) |
| Fairlead: Hawse, polished aluminum |
| Recommended battery: 650 CCA minimum for winching |
| Battery leads: 2 gauge, 72 in. (1.83m) |
| Finish: High-gloss powder coat over primer undercoating |
| Drum diameter/length: 3.5 in /8.2 in (9cm/21cm) |
|
Weight: Shipping: 104 lbs. (45 kgs); Net Product: 92 lbs. (40kgs) Drop shipping required for this item. We'll contact you for a quote. |
