Detects when it's time to replace the solenoid valve!^*1
Enhances the reliability of your products!

Note ^*1: This feature is currently under development.

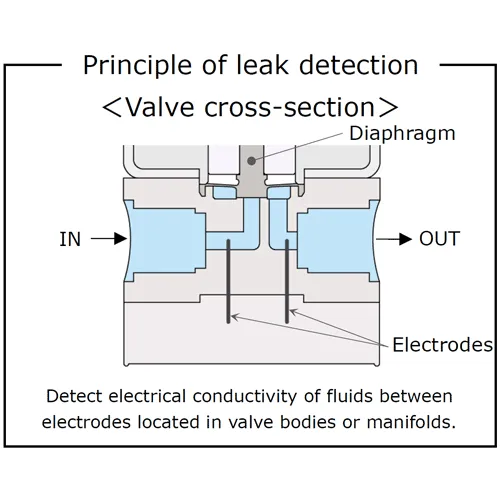

Electrodes are integrated into the valve body or manifold. By monitoring the electrical conductivity of the liquid, the sensors detect fluid leakage at the valve seal, which may be caused by foreign materials or other factors, and provide feedback signals to the customer's system.

Future Scalability:

1. Enables remote system management and proactive maintenance by monitoring when valves require maintenance or replacement.
2. This feature is compatible with a wide range of valve series.

Feel free to for more information about our advanced solenoid valve, which features an integrated sensor for precise leak detection.
This innovative design helps ensure optimal performance by quickly identifying potential issues, improving reliability, and reducing maintenance costs.

REMOTE MAINTENANCE

Note 1: Details such as specifications, etc., may be changed without notice.

Note 2: This feature is under development.

Calibration curve data (Example)
