Dual Compatibility for Enhanced Versatility: The ROCKSOLAR 30A Solar Charge Controller seamlessly adapts to both 12V and 24V systems, offering a versatile solution for a broad spectrum of solar power applications, from small residential setups to larger outdoor installations.
Intelligent Solar Management System: Equipped with an industrial-grade microcontroller, this advanced charge controller ensures the efficient operation of solar panels and batteries. It automatically optimizes the system's performance, maximizing the lifespan and health of your batteries.

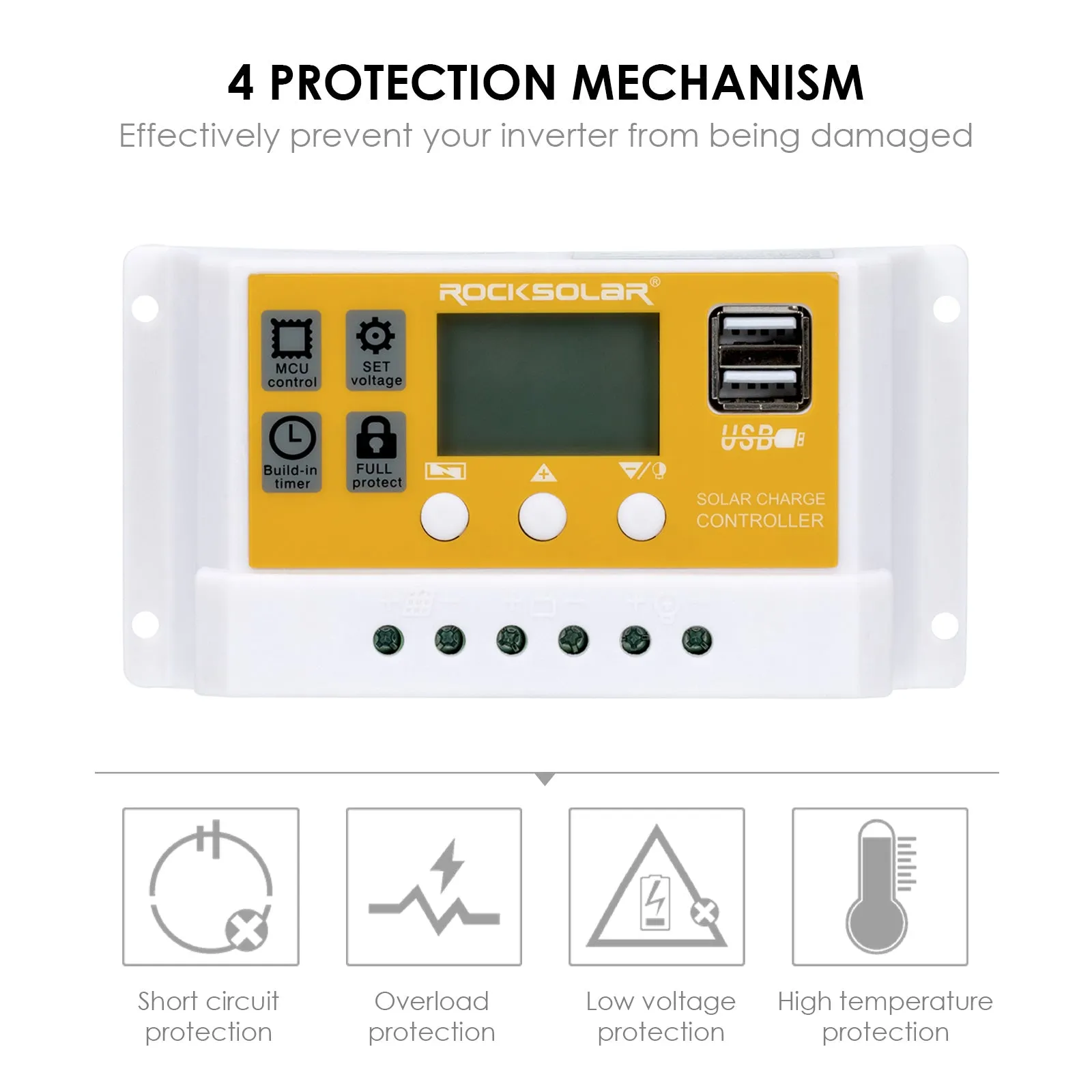

Robust Protection Mechanisms: The controller is designed with a fully integrated 3-stage PWM charge management system and multiple protection functions. It safeguards your batteries against short-circuits, open-circuits, reverse polarity, and overloads, while ensuring the most effective charging process.
Convenient Mobile Device Charging: Featuring dual USB outputs (5V/2.5A max), the ROCKSOLAR 30A Controller allows easy on-the-go charging of mobile devices, adding an extra layer of utility for users needing power in remote locations.
Wide Battery Compatibility: This charge controller is suitable for a variety of battery types, including lead-acid, gel, and lithium phosphate, ensuring compatibility with different storage solutions and prolonging battery life across various applications.

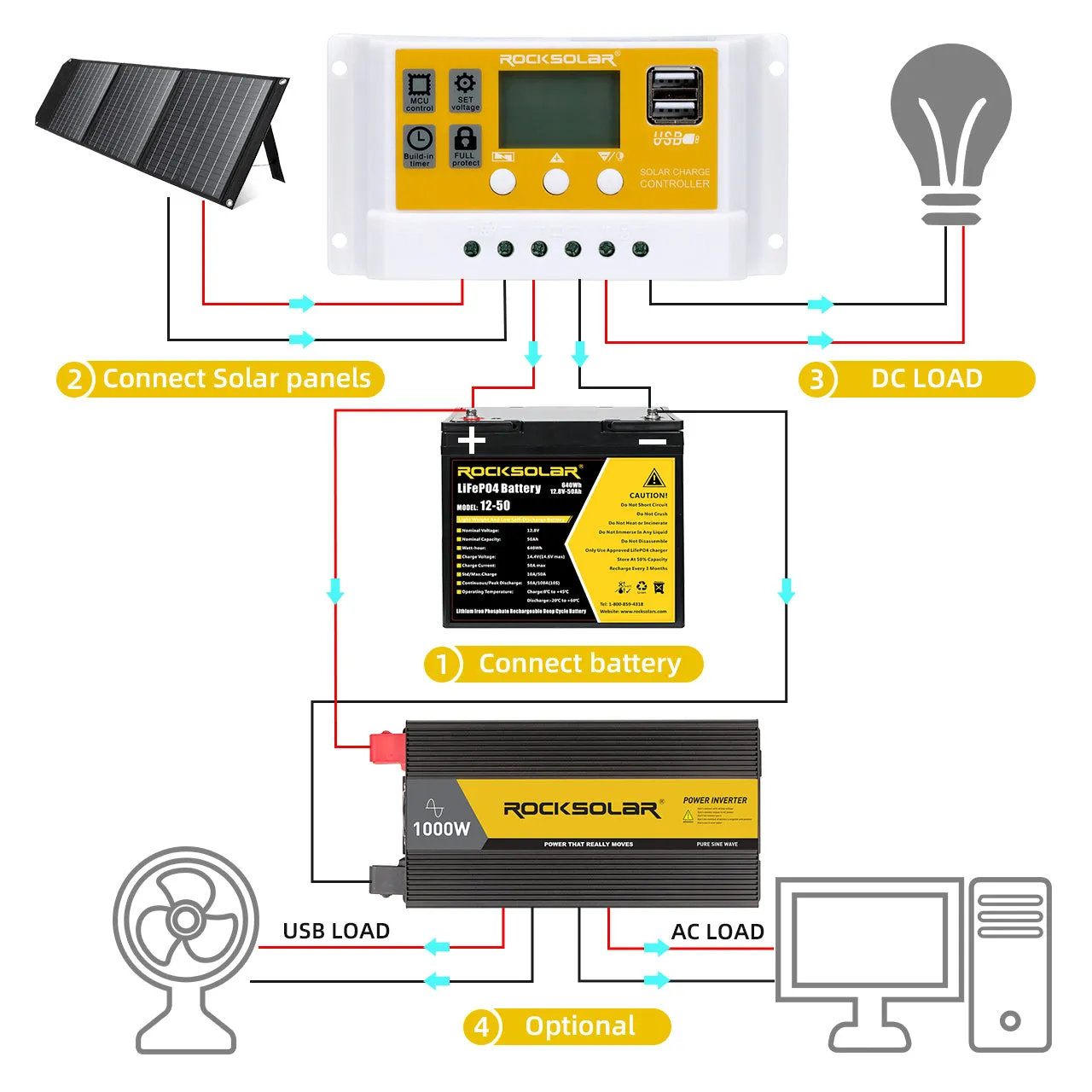

User-Friendly Installation and Monitoring: With its clear LCD display, the ROCKSOLAR 30A Solar Charge Controller offers an easy-to-read interface for monitoring and controlling the charging process. Its straightforward installation process – connect the battery, then the solar panel, and finally the load – makes it user-friendly and accessible, even for those new to solar power systems.
- 1x ROCKSOLAR 30A PWM Solar Charge Controller: Efficiently manages solar power for optimal battery charging and longevity.
- 1x User Manual: Detailed instructions for setup, operation, and maintenance, ensuring you get the most out of your solar charge controller.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Model-W88-C |
| PV Input | Max Open Voltage of PV Module: 55Vdc |
| MPP Tracking Efficiency | 99.50% |
| Light Control Voltage | 5V |
| Charge Mode | 3 Stage Charge Algorithm |
| Battery Type | Lithium and Lead Acid Battery |
| Nominal System Voltage | 12/24V |
| Rated Charging Current | 30A |
| Battery Voltage Range | 8~32V |
| High Voltage Disconnection | 16V (24V x 2) |
| Duration for Absorption Charging | 2 hours |
| Charge Loop Voltage Drop | ≤0.29V |
| Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
| Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
| Absorption Charging Voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
| Floating Charging Voltage | AGM/ GEL/ FLd: 13.8V |
| Low Voltage Re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
| Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
| Operating Temperature Range | -20℃~55℃ (Full rated current) |
| LCD Temperature Range | -20℃~70℃ |
| Humidity Range | ≤95% No condensation |
| Protection Class | IP30 |
| Dimensions | 123*178*48 mm |
| Installation Hole | 108*120 ∅5 |
The 30A PWM Solar Charge Controller is designed to work with both 12V and 24V systems, making it a versatile choice for various solar power applications, from small residential setups to larger outdoor installations.
The 30A Controller features a built-in industrial microcontroller that optimizes the working of solar panels and batteries, ensuring efficient energy use and prolonging battery life.
The 30A Controller is equipped with multiple protection functions, such as short-circuit, open-circuit, reverse, and over-load protection, to ensure your batteries are securely charged and maintained.
Yes, the 30A PWM Controller includes dual USB outputs (5V/2.5A max), allowing for convenient charging of mobile devices directly from the controller.
The 30A PWM Solar Charge Controller supports multiple battery types, including lead-acid, gel, and lithium phosphate, offering flexibility for different solar energy systems.
The 30A Controller features a clear LCD display for effortless monitoring and a simple installation process – just connect the battery, solar panel, and load – making it user-friendly for both beginners and experienced users.
