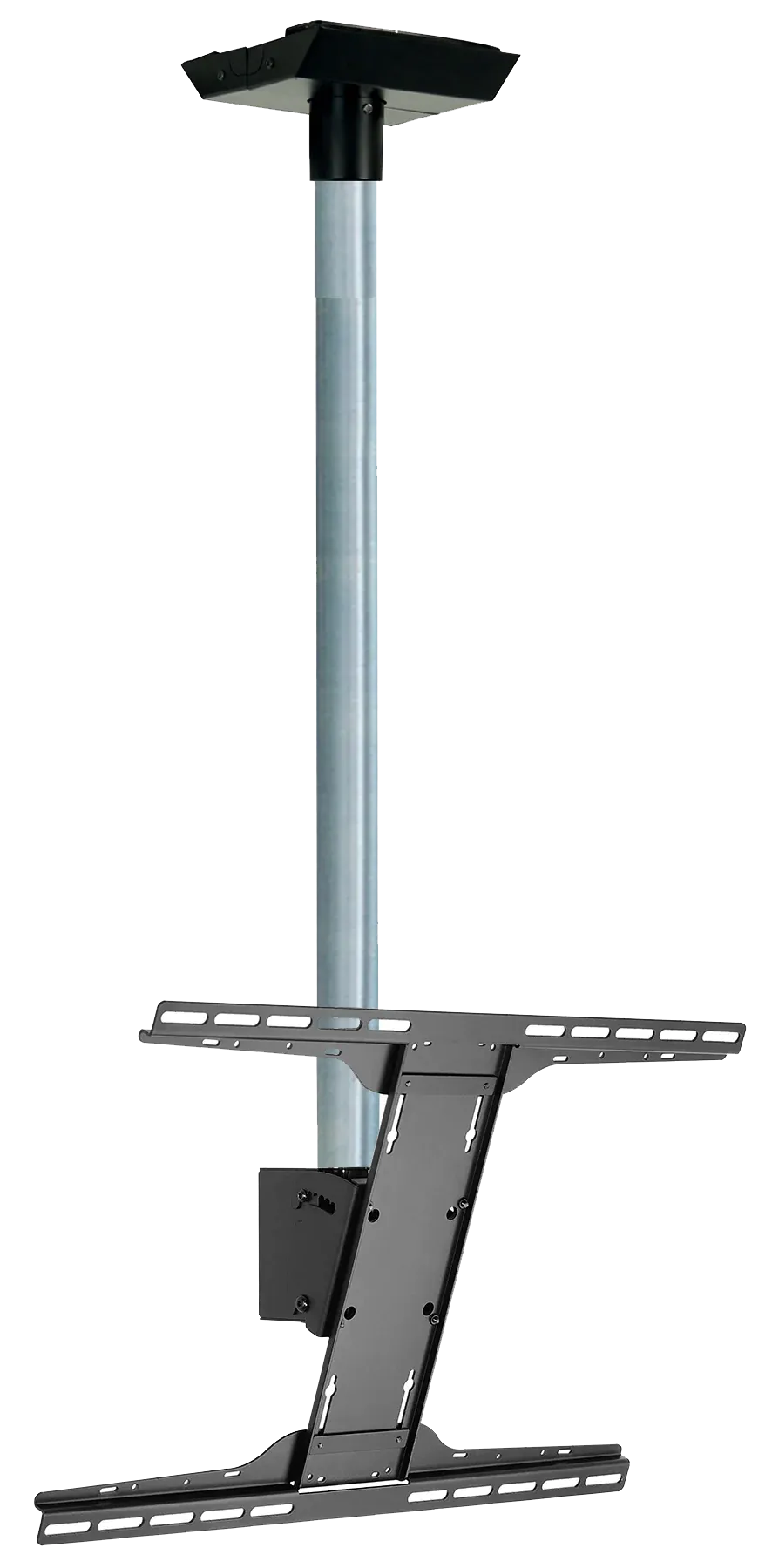

Peerless-AV constantly strives to improve the versatility and ease of use of our products, and having listened to the feedback from installers and integrators it is apparent that the market requires a product range that can fulfill multiple requirements from a limited number of SKUs. Thus the Modular Series has been introduced as a universal ceiling mount solution with just over a dozen components in the range, allowing the professional installer to configure their own bespoke flat panel or projector mounting solution. The MOD-FPSKIT200 comes with all of the components required to ceiling mount a single 32"-75" flat panel display. However, being composed of Modular components the mount can be expanded or changed as required.
Features
- Portrait or Landscape screen installation for added versatility in digital signage applications
- Integrated cable channel runs through column with open access at both ends for ease of use
- MOD-FPMS Single screen mount allows addition of single screen mounting adaptor, with quick connect feature delivering -5° to 20° tilt and incremental lock at every 5° interval
- MOD-UNL Large universal adaptor supports 32-75" displays up to VESA® 600x400mm, 60kg (132lbs) max. weight
- MOD-P200 50mm diameter column supplied as 2m length and cuttable to required size
- MOD-CPF Heavy duty ceiling plate securely mounts to concrete or wood joist ceilings (Optional aesthetic cover MOD-ACF)
- 2m flat panel ceiling mount kit
- Kit includes following parts: 1 x MOD-CPF, 1 x MOD-P200, 1 x MOD-FPMS and 1 x MOD-UNL
Specifications
- Minimum to Maximum Screen Size: 32" to 75"
- VESA Pattern: 600 x 400
- Weight Capacity: 132lb (60kg)
- Color: Black
- Finish: Powder Coat
- Security Features: Secuirty Hardware
- Tilt: 20/-5
- Product Dimensions: 0" (724x1673x175mm)
