Features:

• Up to 4 slots, user installable input cards in any combination by plugging into the main unit
• 1000V input and instantaneous DC or RMS waveform measurement with new Analog Unit MR8905
• Measure multiple channels simultaneously despite handheld portable design
• Max. 2 μsec high-speed simultaneous logging for all input channels
• Save directly to the SD Card in real time for uninterrupted long-term logging
• 16-bit high-resolution measurement of voltage, temperature, distortion and CAN signals

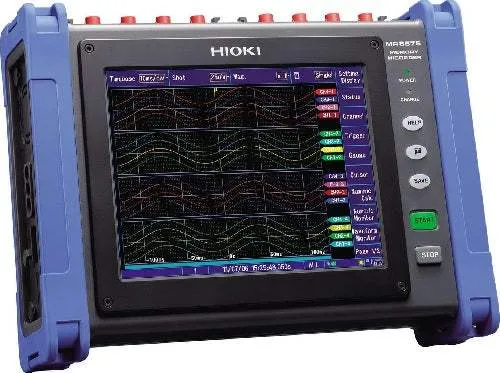

Hioki Memory HiCorders are high-speed waveform monitoring and recording devices that can simultaneously measure multiple physical phenomena such as voltage, current, temperature, vibration, weight, acceleration and rotation due to complete isolation between channels and from each channel to the ground. The MR8875 data acquisition (DAQ) recorder accommodates plug-and-play input modules to meet applications such as onboard vehicle analysis, current consumption testing of portable devices, and measuring the voltage waveforms of superconducting materials and contacts.

Synchronized mixed recording of CAN data and real data such as voltage, temperature, or distortion signals

CAN bus signals that are used widely, particularly in automotive applications, can be recorded, analyzed, converted to analog waveforms, and viewed. Simultaneous recording and viewing of analog waveforms from sensors, in addition to the CAN data, allows for checking the impact of noise and level changes on the communication data.
