This kit INCLUDES VEHICLE SPECIFIC CONNECTORS WHICH MEANS NO WIRE SPLICING!

We've done all the programming so you don't have to! Don't be fooled by other kits that require extensive setup and wiring that takes all day.

This is the first and only Plug & Play CAN based boost controller on the market! Our kit works with Gen 5 Camaro SS/ZL1 and the Gen 2 CTSV (Coupe/Sedan).

The kit uses FRONT WHEEL SPEED accessed from the powertrain CANbus via a plug-n-play connector. In conjunction with vehicle speed and throttle we use a multi-position switch to determine boost level and boost ramps.

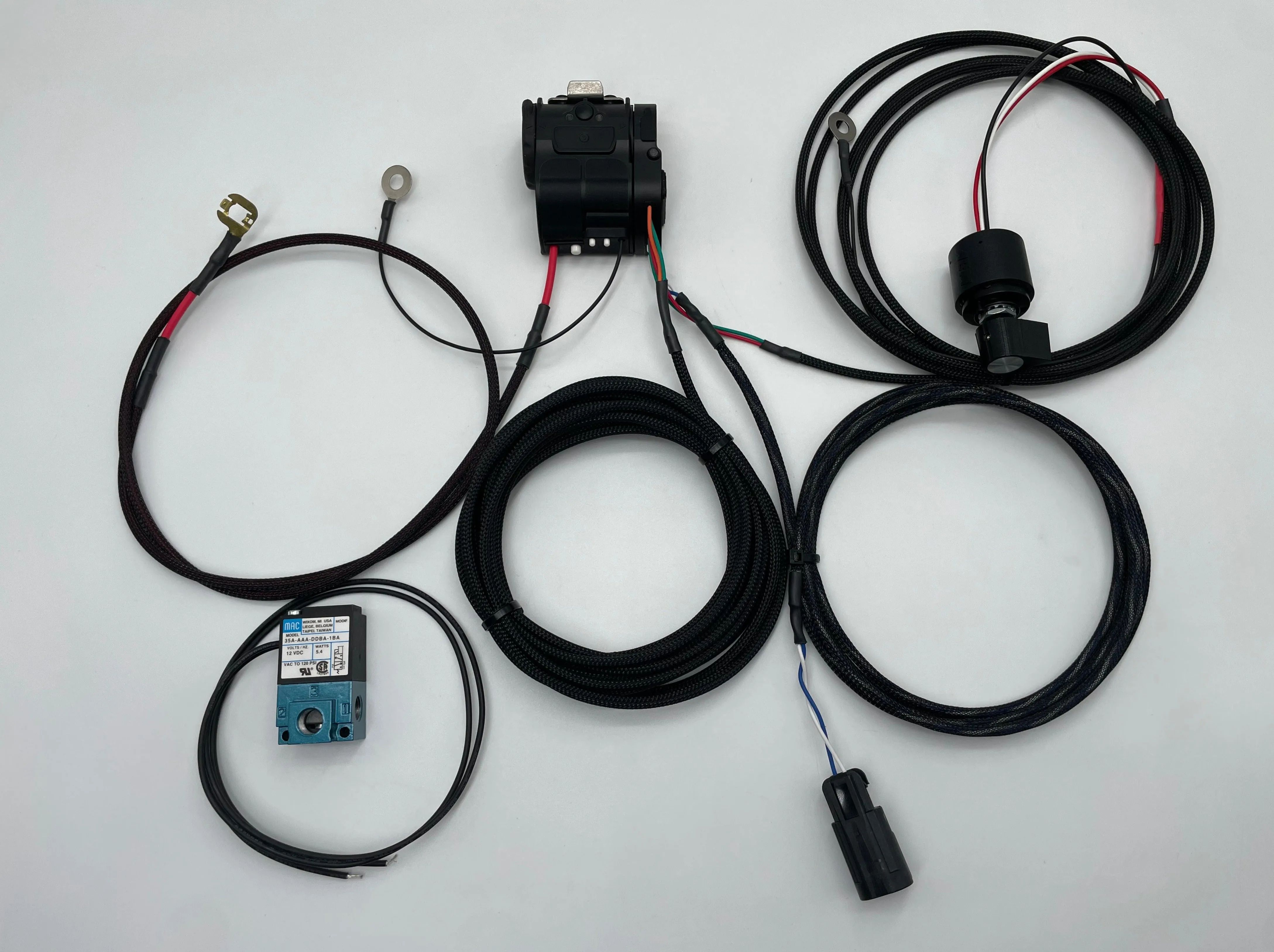

KAI-5517 (3-Port Solenoid Kit) Includes:

• Plug & Play harness (CANbus connector, trimpot wiring and boost solenoid wiring)
• 3-port boost solenoid

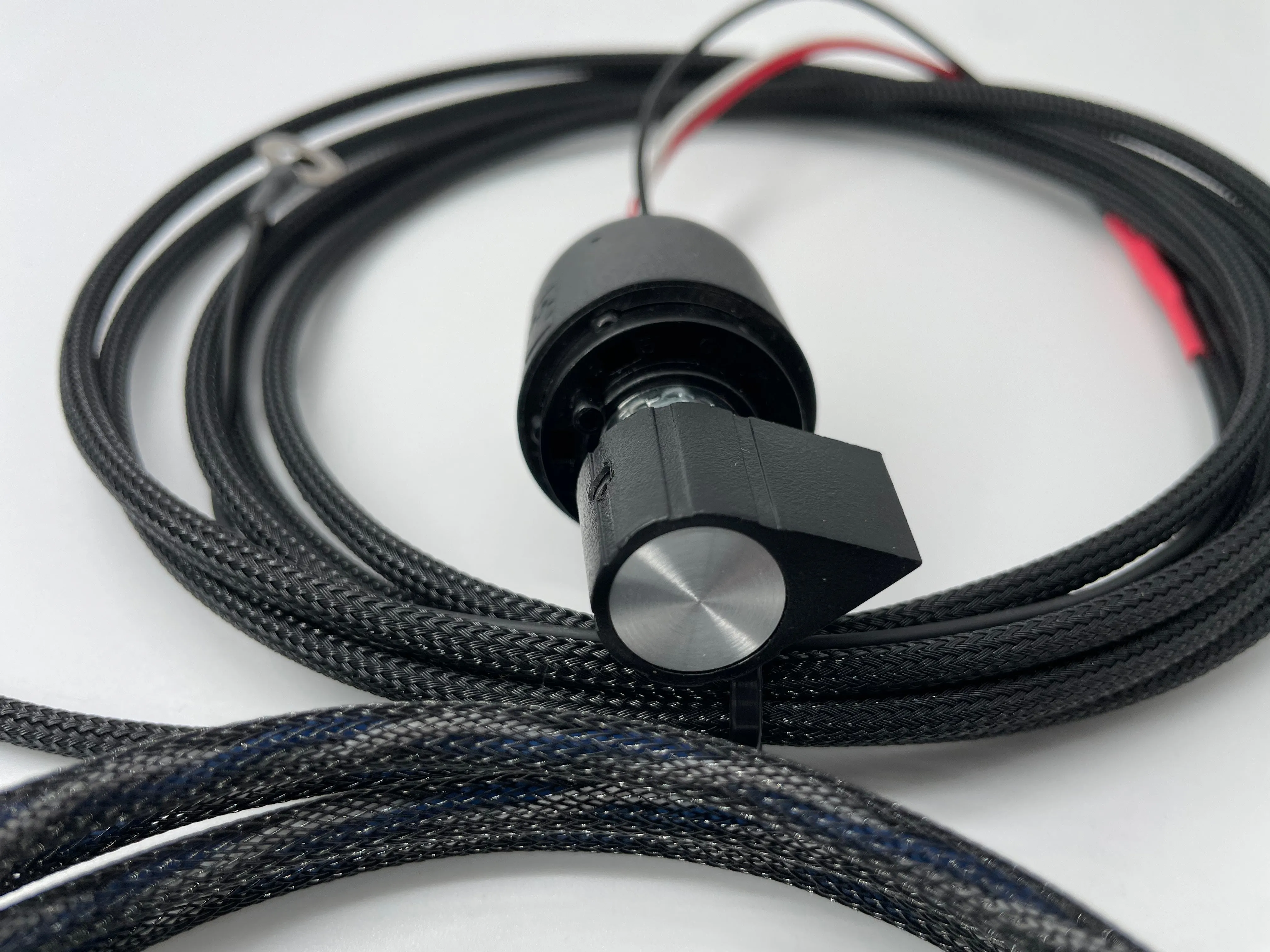

• 12-position switch
• Kaizen Relay

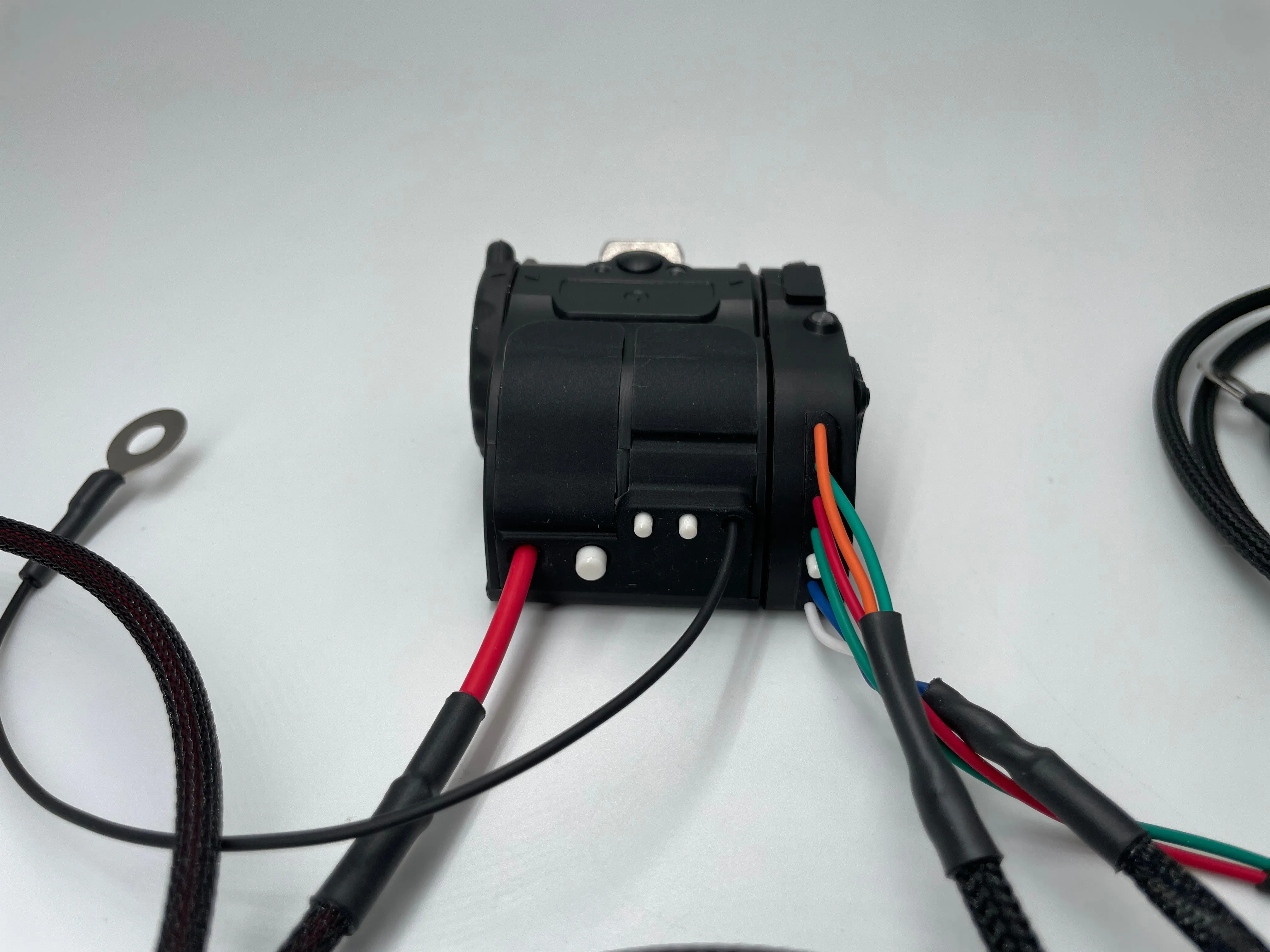

• Pre-programmed Control Module

KAI-5518 (4-Port Solenoid Kit) Includes:

• Plug & Play harness (CANbus connector, trimpot wiring and boost solenoid wiring)
• 4-port boost solenoid
• 12-position switch
• Kaizen Relay
• Pre-programmed Control Module

OPTIONS:

• Add IC Water Pump Control w/ Davies Craig EWP Harness?
  • This option includes a preconfigured Control Module that will automatically control an Electric Water Pump using CAN messages from the vehicle. The harness has a connector for a Davies Craig but can be used on any brushed electric water pump.
  • This option cannot be combined with Aux Fuel Pump Option
• Add Aux Fuel Pump Control w/ 12ga Power Wire?
  • This option includes a preconfigured Control Module that will automatically control an Aux Fuel Pump at WOT using CAN messages from the vehicle. It includes a 12ga power wire for any brushed fuel pump under 40A.
  • This option cannot be combined with the EWP Option

Please with your questions
