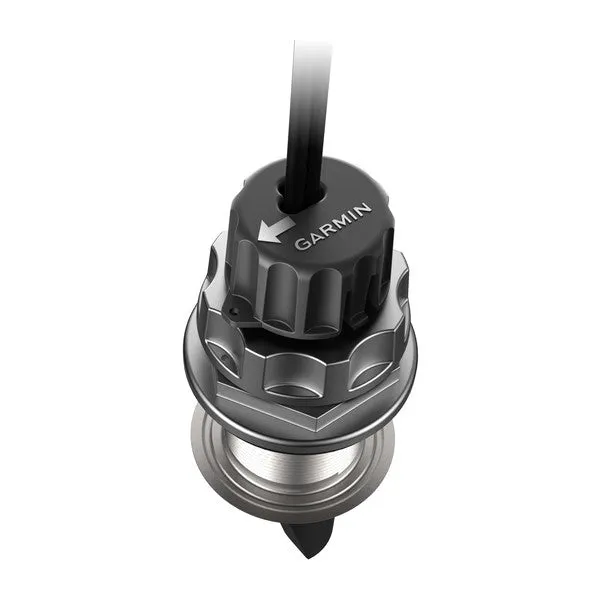

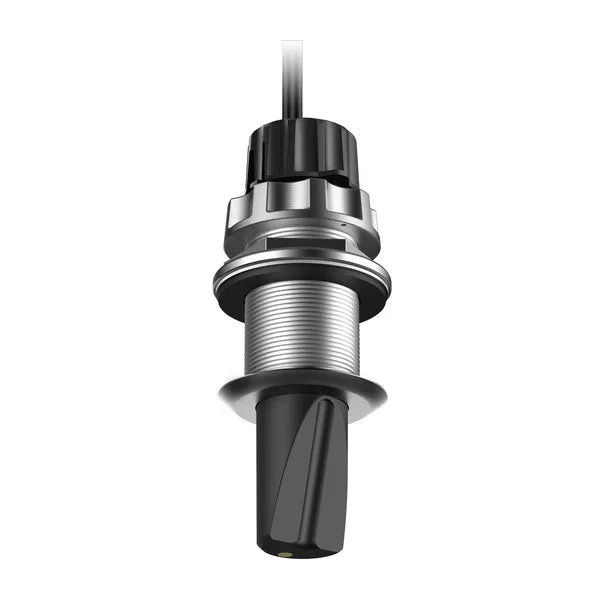

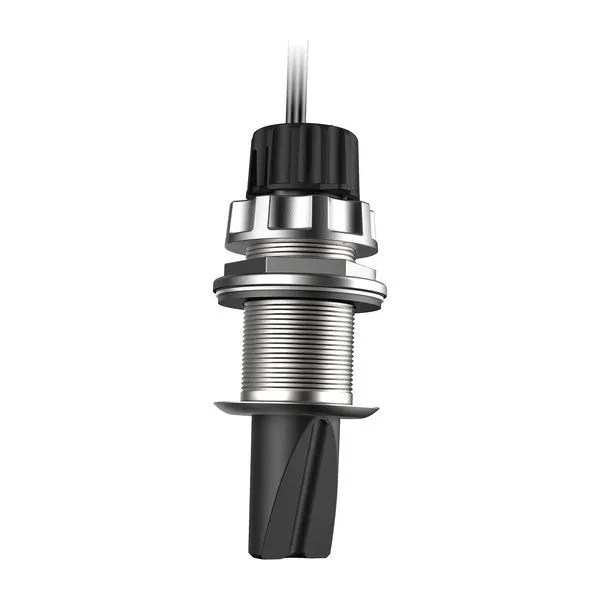

Panoptix PS51-TH

The Panoptix multibeam thru-hull transducer with premium FrontVü forward-looking sonar helps you avoid running aground by displaying the bottom ahead of your boat in real time on your chartplotter. It also includes LiveVü Forward sonar to give you the unique ability to see fish — even divers — swimming in real time under and ahead of your boat with a 100-foot forward range.

Panoptix FrontVü sonar displays bottom up to 300 feet ahead of the boat (at 8 to 10 times the current depth) and delivers nearly instant feedback to give you more time to react. You can be more confident when navigating unfamiliar water because Panoptix FrontVü has a narrow beam, forward-looking sonar (20 degrees). This allows you to focus on the bottom in front of your boat and not be confused with what is off to each side.

It also includes an AHRS sensor for motion stabilization that allows you to see what is in front of your boat even in rough water conditions. And all the FrontVü forward-looking sonar image data can be easily shared with other chartplotters across the Garmin Marine Network.

PS51-TH Transducer Specs

Transducer Weight: 1.54 lb (0.7 kg)
Thru-hull mounting hardware Weight: 1.76 lb (0.8 kg)
Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
Non-operating Temperature Range: -40°F to 158°F (-40°C to 70°C)
Mounting Options: Thru-hull
Power Consumption: '
Voltage Range: 10-35 Vdc
Frequencies Supported: 417 kHz
Maximum Range: 8-10x the current depth, up to 300 ft
LiveVü Forward Beam shape: 20° x 90°
Power: 96 W
BeamWidth: 120°x20°
Maximum Depth: 300 ft. Down; 300 ft. Forward
Number of Pins: Ethernet
Cable Length: Power Cable 6 ft.; Ethernet Cable 6 ft.; Ethernet Extension Cable 50 ft.
Supported Deadrise/Transom Angles: Up to 20° deadrise with 3/4" hull

PS51-TH Transducer Features

Premium FrontVü forward-looking sonar helps you avoid running aground
Displays the bottom up to 300 feet ahead of your boat in real time
Displays depth and temperature data

Offers LiveVü forward for fishing – see fish swimming in front of your boat, even when stationary
Delivers nearly instant feedback to give you more time to react
Standard 50.88 mm (2-inch) stainless steel thru-hull mount

Narrow beam, forward-looking sonar that focuses on the bottom in front of your boat
Is compatible with all Panoptix capable Garmin chartplotters
Withstands speeds up to 45 knots, with operation up to 8 knots
