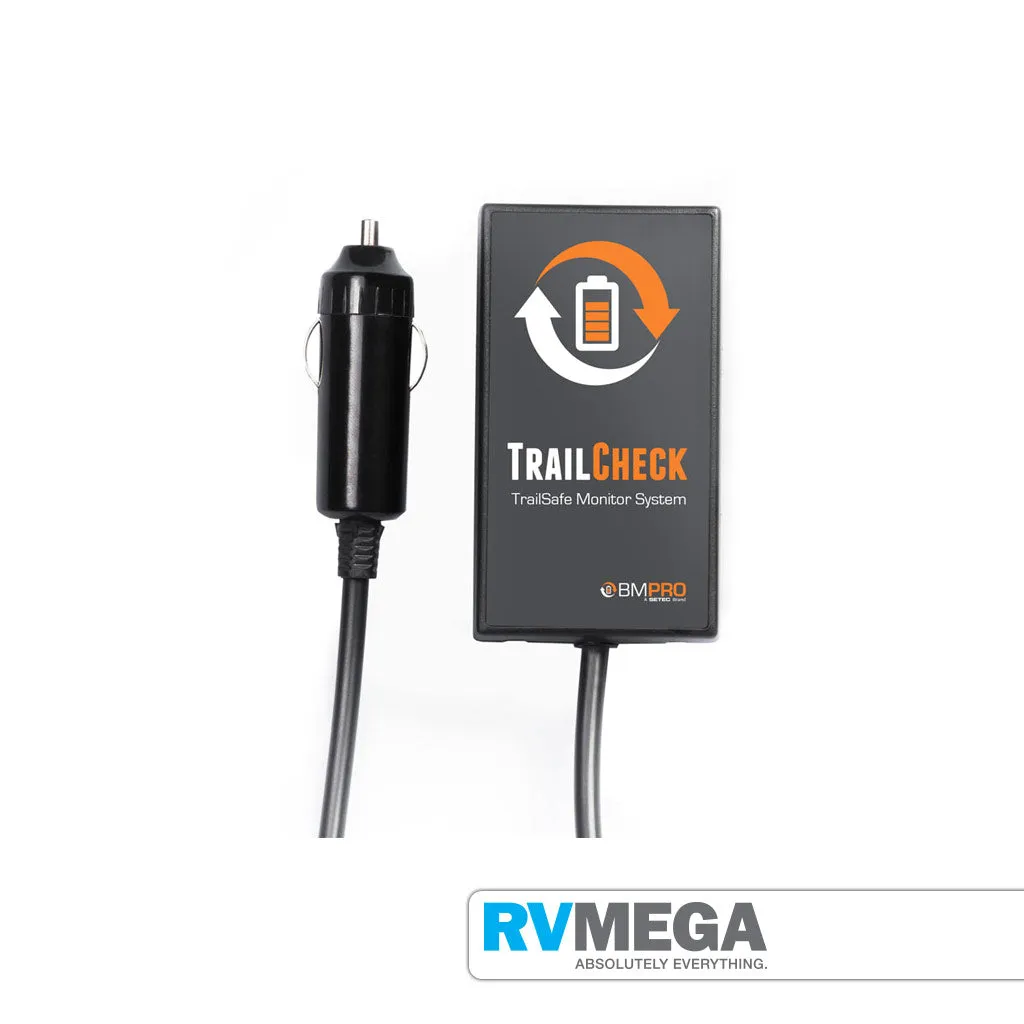

Monitor your trailer with trailcheck

TrailCheck is an additional remote trailer battery monitor system in the tow vehicle. Use it with TrailSafeBT break-away safety system. As a wireless solution, TrailCheck communicates with TrailSafeBT via bluetooth.

NSW in Australia has the extra legal requirement to have a remote battery monitor onboard, which may soon apply here in NZ. The driver should be able to see or hear it, and it also should indicate that the breakaway system has a charged battery. Don’t go camping without onboard monitor TrailCheck!

The TrailCheck will indicate system status with blue, green, orange or red LED indicators. For example, green light indicates the battery is charged enough for over 15 minutes of operation – and that’s what you need in case of emergency.Mount TrailCheck with the provided velcro strips and plug it into a 15A (or lower) fused vehicle 12VDC Outlet or Cigarette lighter. Then pair it with the TrailSafeBT and test it. You are now safe to tow your caravan!

Features

• Bluetooth connectivity

• LED status indicators for full-system safety check

• Communications Bluetooth Low Energy (BLE 4.1)

System voltage 12V nominal (not suitable for 24V systems)

Electric brake load 4 to 18A

Brake light load 0 to 8A

Wired monitor current 0 to 30mA
