Product Details
＋

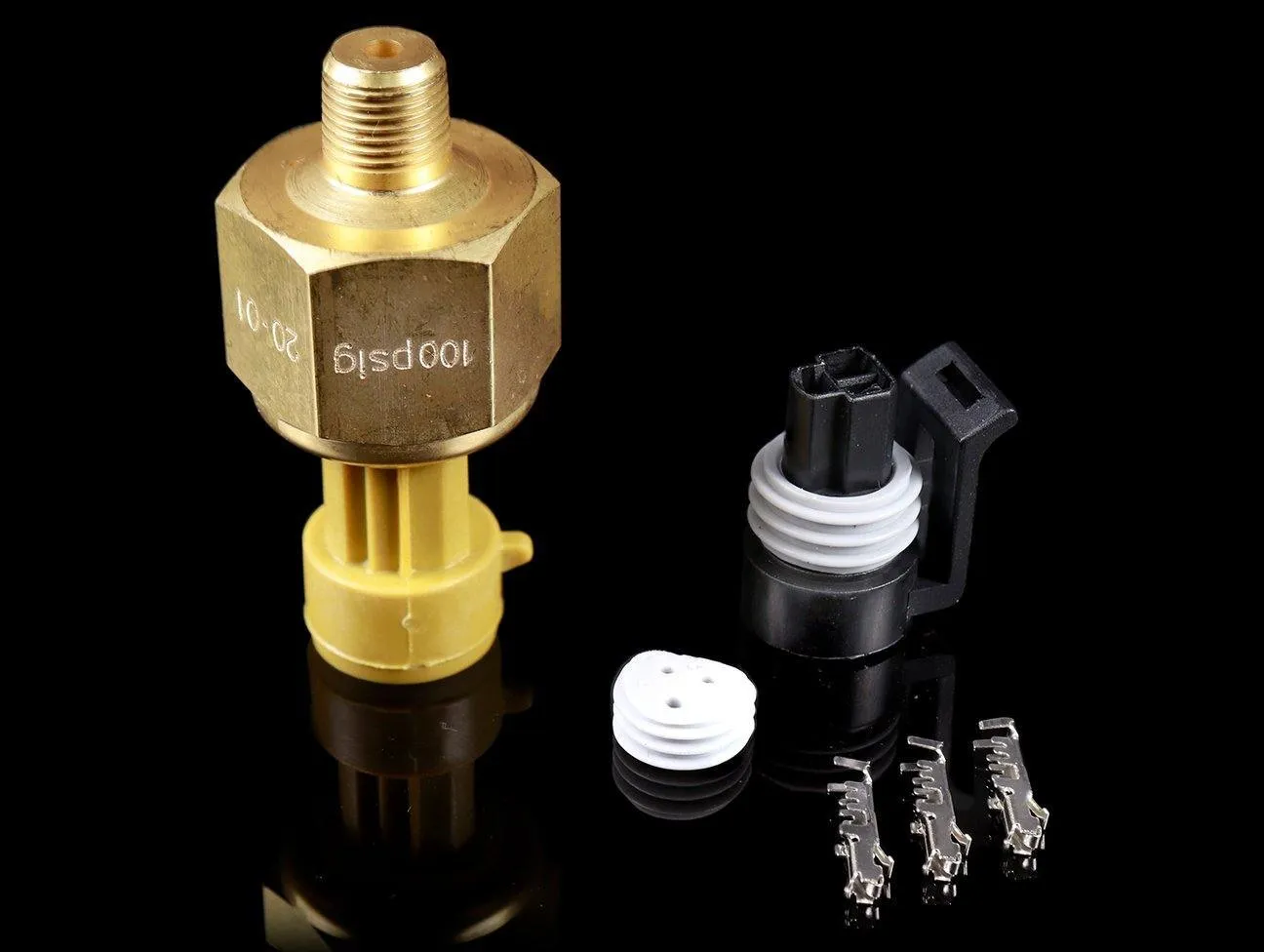

AEM Electronics PSIG Sensor Kit
AEM Electronics PSIG sensor kits feature high-quality sealed housings for maximum durability. They have a 3-wire mating connector with 12 in. leads for an easy plug-in installation. Kits are available for boost, exhaust gas temperature, nitrous oxide, brake pressure, inlet air temperature, or UEGO replacement gauges.

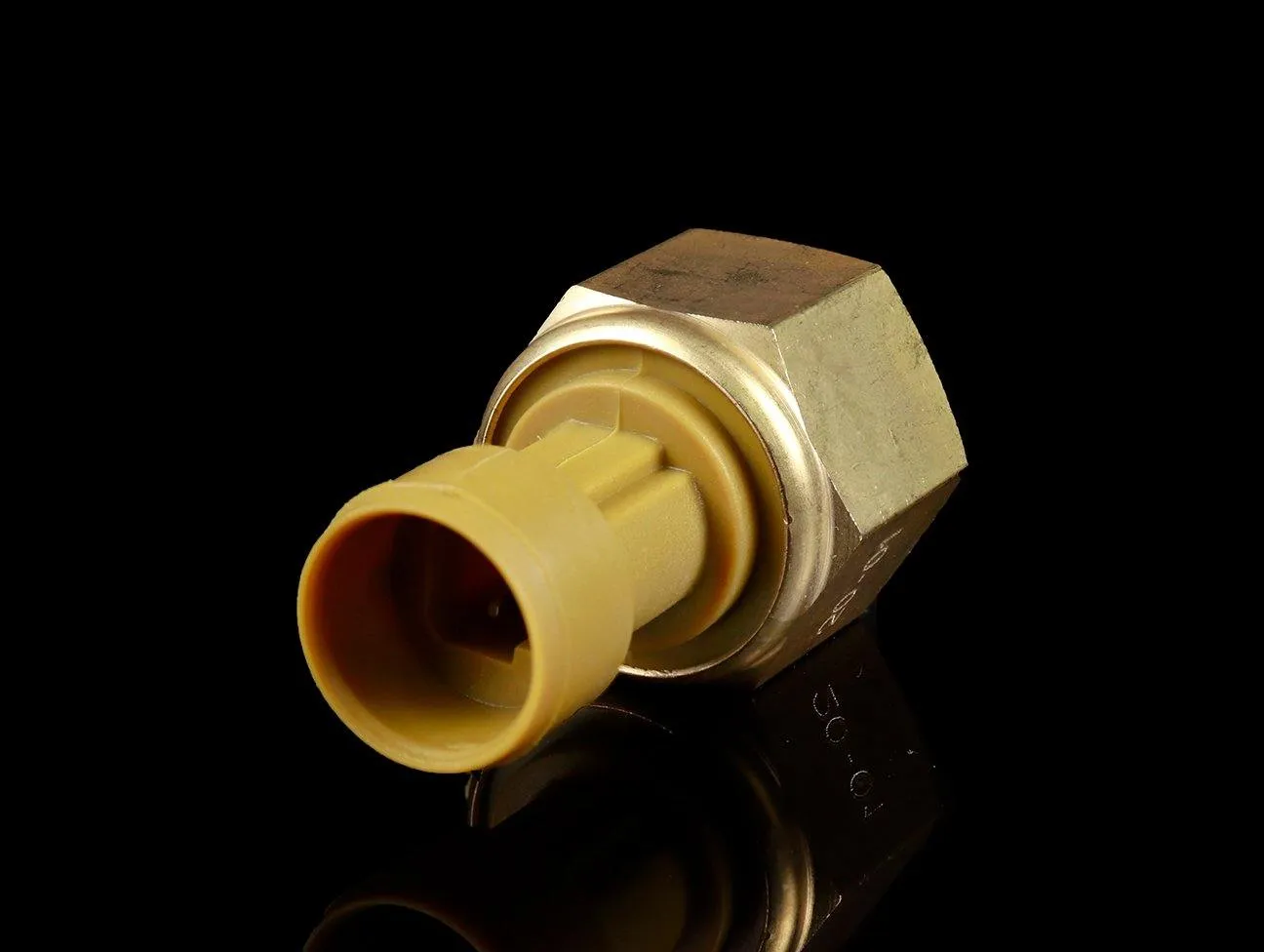

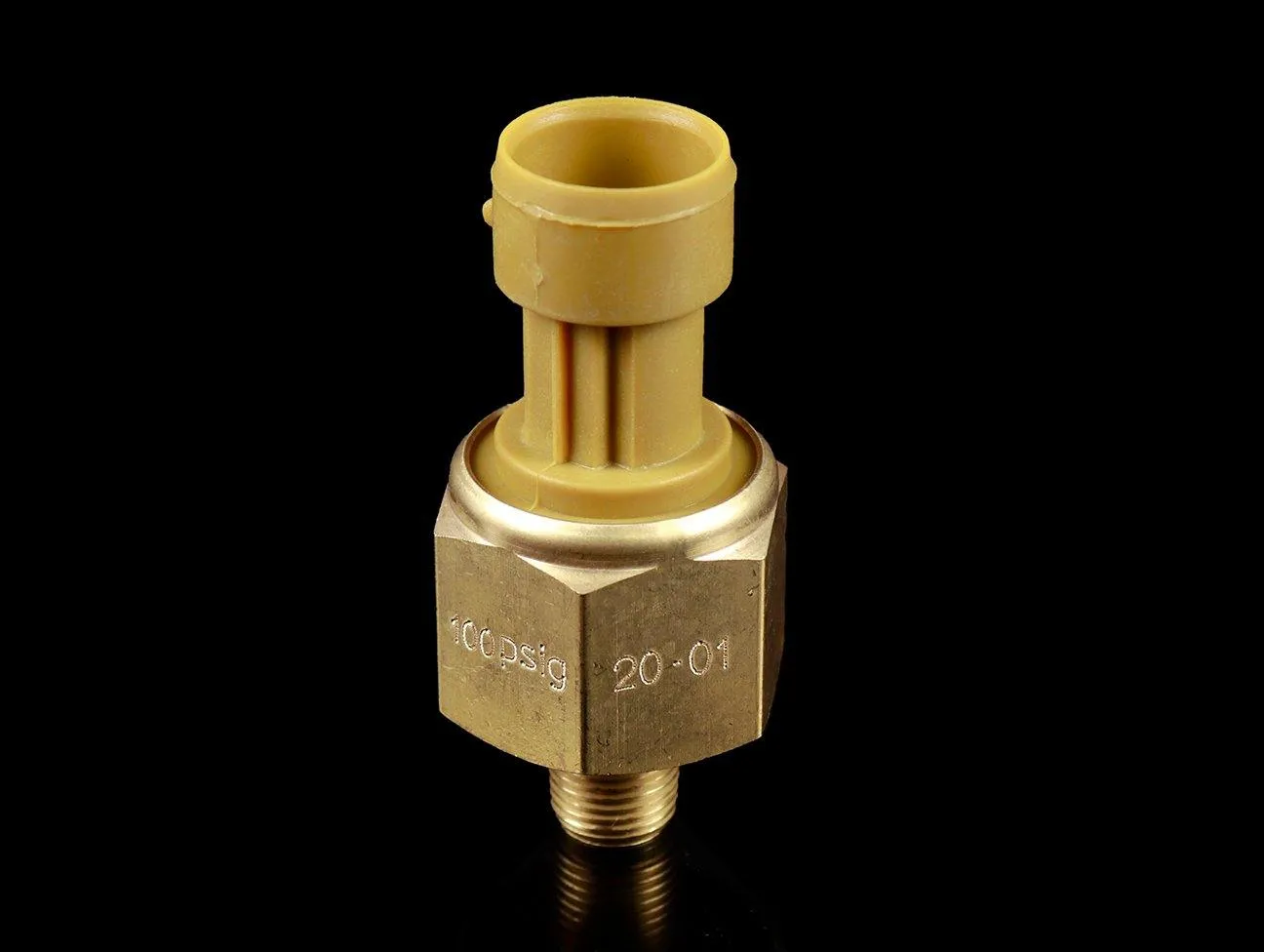

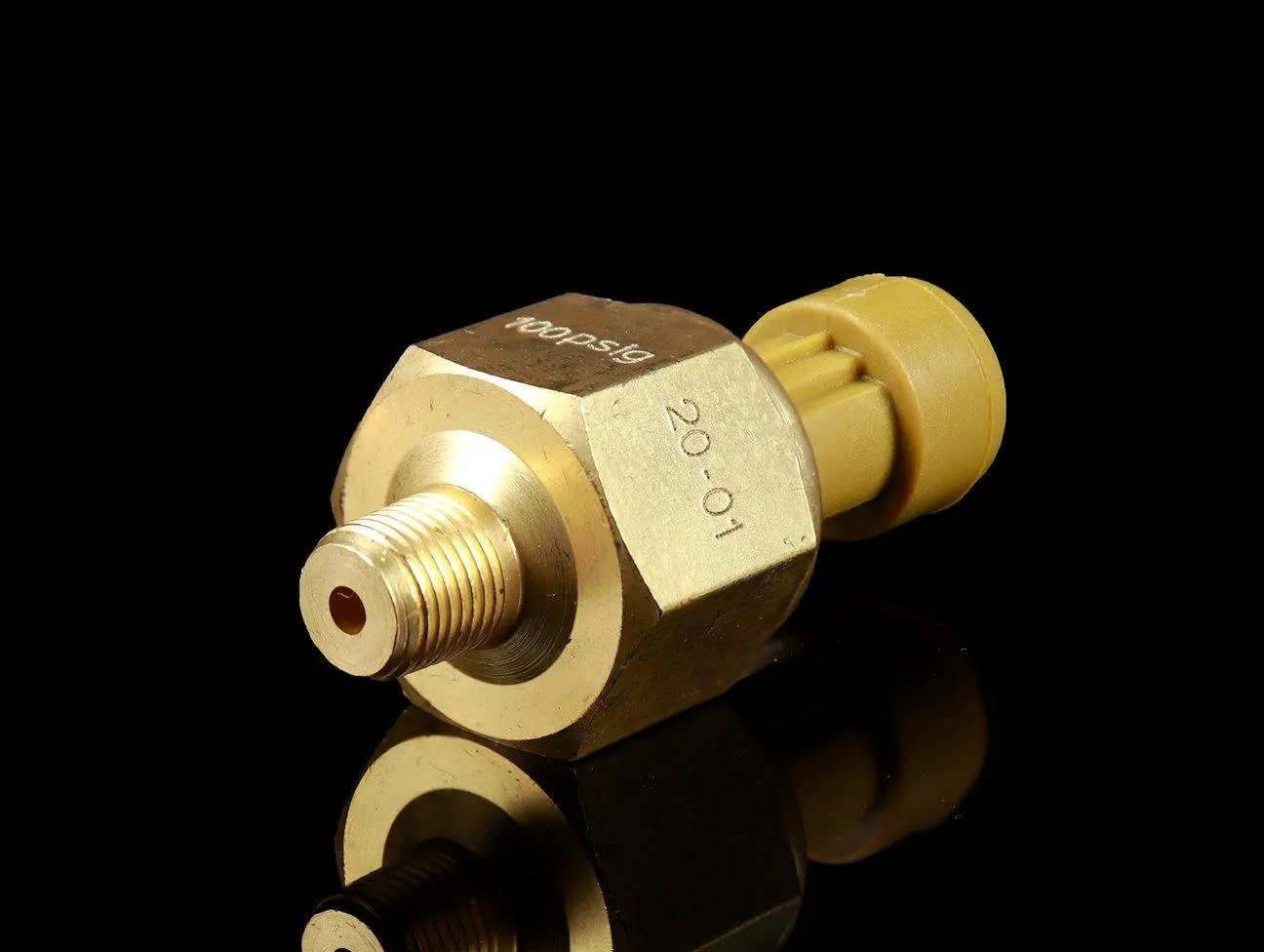

AEM Electronics PSIG sensor kits are available in brass or stainless steel. Use brass sensors where you need a good reference to what pressure is being seen; e.g., reference/information of manifold pressure, not for ECU calibration. Stainless sensors should be used where you need exact details of the pressure; e.g., calibration/critical MAP sensor information for the ECU.
Features
- Stainless steel sensors accurate to within 1 percent of full scale (pressure sensors)
- Brass sensors accurate to within 3 percent of full scale (pressure sensors)
- High-quality sealed sensor housings are virtually impervious to automotive fluids (360-degree welded wetted area)

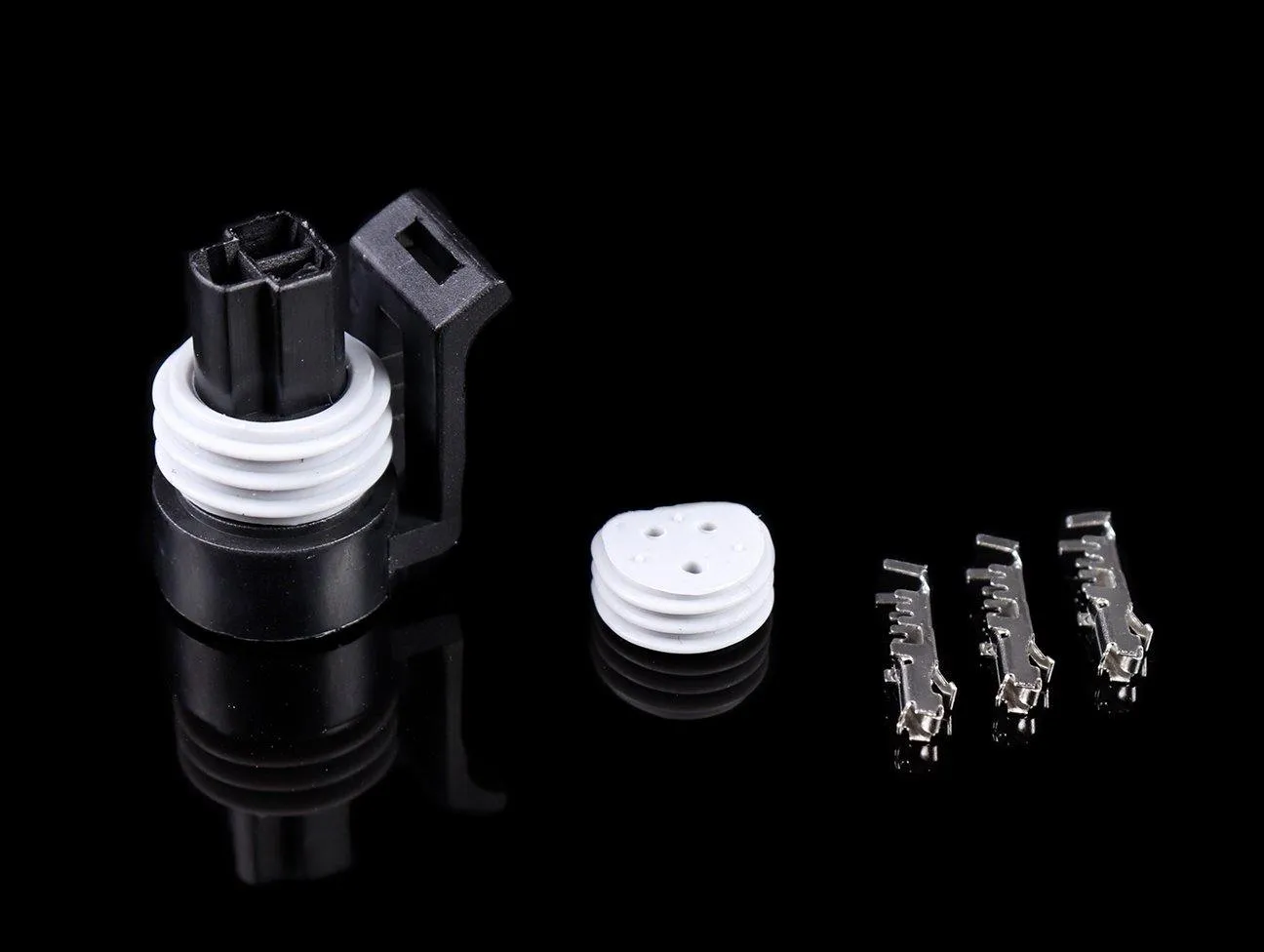

- Connector and pins included
- Accuracy: /- 3% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity
- Operating Temperature: -20C to 105C / -4F to 221F
- Burst Pressure: 200PSI
- Response Time: < 1mS
- Wetted Materials: 304L & 316L Stainless Steel
- Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 Axes
- Weight: <85g
- Supply Current: <6mA at 5 Vdc
- Output: .5 to 4.5Vdc Linear
- Transfer Function: PSI = (25*(Voltage))-12.5
