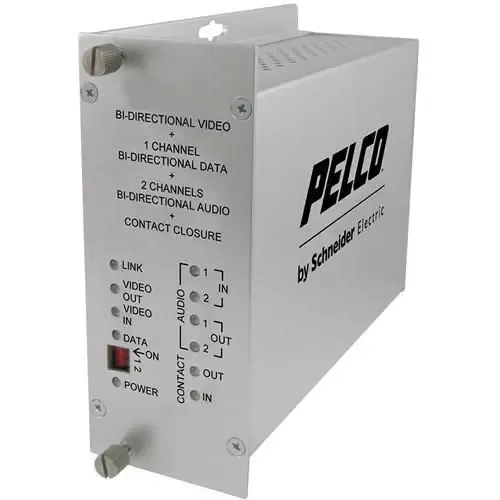

1 Channel Video Single Mode Fiber Transmitter ST Connector FTV10D1A2S1ST

Also Known As:

1 Channel Transmitter, Single Mode Transmitter, ST Connector, Fiber Transmitter

About:

The FTV10D1A2S1ST fiber transmitter provide simultaneous transmission of one bidirectional video channel, one bidirectional data channel, two bidirectional audio channels, and one bidirectional contact closure over one optical fiber in a two-slot wide design. Unit is available in single-mode versions. For stand-alone and wall mount installations, external power is required for the FTV10D1A2S1ST unit. The units can be powered with the recommended FEXTPS fiber external power supply.

Features:

• Hot-Swappable Rack Modules
• 1 Bidirectional Contact Closure
• Laser Diode for Transmission of Optical Signals
• Stand-Alone or Rack-Mountable Modular Design
• Compatible NTSC, PAL, and SECAM Video Standards
• Single-Mode Support for Distances up to 48 km (29.8 mi)
• LED Status Indicators for Monitoring All Critical Operating Parameters
• Voltage Transient Protection on All Power and Signal Input/Output Lines
• Exceeds All Requirements for the EIA RS-250C Short-Haul Transmission Specification
• 10-Bit Digitally Encoded Bidirectional Video for High-Quality Transmission over a Single Fiber
• Designed to Meet NEMA TS 1/TS 2 and Caltrans Traffic Signal Control Equipment Environmental Standards
• 1 Bidirectional Data Channel Supports RS-232, RS-422, and RS-485 (2-wire/4-wire), Manchester, and Bi-Phase Communication
• 2 Bidirectional 24-Bit (96 kHz) Digitally Encoded Audio Channels with 600-Ohm Balanced Line-Level Audio (up to 6 dBm) and 20 to 18 kHz Audio Bandwidth

Specifications:

• Product Type: Transmitter
• Channels: 1 Channel
• Connection Type: ST
• Part Number : FTV10D1A2S1ST
