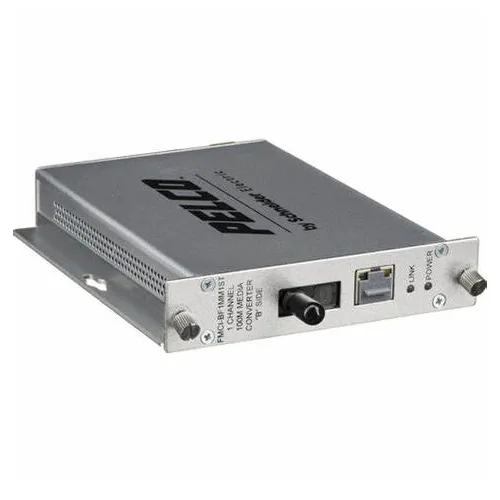

The FMCI-BF1MM1ST Ethernet Media Converter is designed for transmitting and receiving 10/100 Mbps data over multimode optical fiber using ST optical connectors. The electrical interface automatically negotiates between 10 Mbps and 100 Mbps Ethernet rates without requiring manual adjustments, while the optical interface operates at a consistent 100 Mbps Ethernet rate. Engineered for durability, this media converter is environmentally hardened to perform reliably in extreme temperature conditions. It features LED indicators for quick assessment of operational status and monitoring critical parameters. For versatile installation, the unit can be DIN-rail mounted with the addition of an adapter plate, making it an adaptable and robust solution for networking applications.
Features:
• Optical Port Supports 100 Mbps Full-Duplex Data
• Transparent to Data Encoding/Compatible with Major Data Protocols
• ST Optical Connectors
• 1-Fiber Design
• Flexible Option for Operating AC/DC Power
Specifications:
• Product Type: Ethernet Media Converter
• Part Number : FMCI-BF1MM1ST
